Lens comparison:
- 1/4” CMOS WXGA HD Sensor / H.264/AVC1 DSP / 512M DDR2
- Rechargeable LIPO Battery (250mah), with battery charger manage IC
- Video: 720P HD H.264/AVC1 .mov video codec,
1280 x 720 30fps
848 x 480 30fps
640 x 480 30fps
- Photo: JPG 1280*960 (no degrading by upsizing to interpolated "5 megapixel" size)
- MicroSD card slot, supports up to 32GB (memory card not included), suggest using Class 4 or above.
- USB2.0, plug and play, easy connection with computers, no driver needed.
- Super mini size, only around 50mm (L) x 32mm (W) x13mm (H)
- Super light-weighted: only approx 17g!
- Multifunctional as a mini DVR, a camera, a webcam, a removable USB drive.
What’s new:
A connector has been added for the internal battery, making it changeable by users who don’t like soldering. You don’t have to throw your camera away when the battery dies. You just need a new battery and change it!
A connector added to the lens/sensor module, making it possible to replace or upgrade it when new modules are available.
New Lens and totally new circuit board design. You will see below improvements in video:
- Overall sharpness: improved
- White balance control / color shifting issue: improved
- Saturation / and contrast boost issue: colors look much more natural now
- Darker corner/edge vignetting issue: improved
You only need one Standard USB Data cable for charging and data exchange with your computer. You don’t need another special charging cable to record videos while charging.
It now supports audio volume control, and you can even mute it to save battery and increase the recording time.

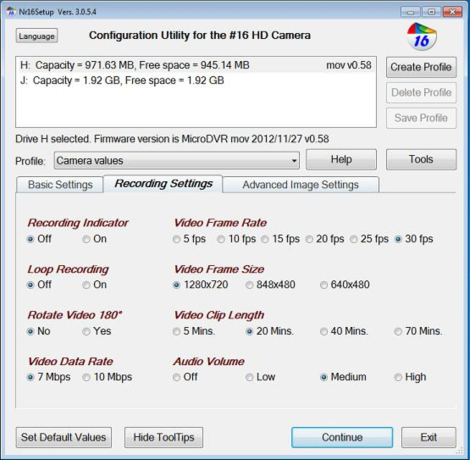

This can be set by TXT config tool.
It now supports optional Loop Recording, to be set by TXT config tool.

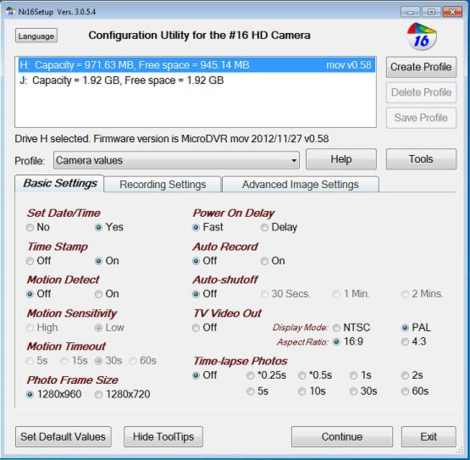

You can set the date and time (white much smaller on the lower left corner), and toggle the date/time stamp on or off, by TXT config tool.
Sometimes you may not want 720P recording to save battery and memory card capacity, now you can toggle video output frame size from 1280x720 30fps (default), to 848x480 30fps, or 640x480 30fps.
Optional AVI output: we also have another firmware option available which will output .AVI file format, using the same H.264 codec, and it offers seamless recording (there is no lost video between clips). If you need it, please send a message to us, and we will send it to you by email.
Please find more details in the PDF manual.
