Funktion | Måleområde | Opløsning | Nøjagtighed |
DC spænding | 0~1000V | 0~1V | ±(0.8%+10) |
AC spænding | 0~750V | 0~1V | ±(1.0%+10) |
AC strøm | 0~10A | 0~0.01A | ±(2.5%+10) |
DC strøm | 0~10A | 0~0.01A | ±(2.5%+10) |
Kapacitans | 0nF~100mF | 0nF~0.1mF | ±(5.0%+5) |
Modstand | 0Ω~60MΩ | 0Ω~0.01MΩ | ±(2.5%+5) |
Temperatur ℃ | -40 ℃~1000℃ | 1℃ | ±(1.9%+5d) |
Temperatur °F | -40°F~1832 °F | 1°F | ±(1.9%+6d) |
Frekvens | 0-999.9 kHz | 0~0.1 kHz | ±(0.8%+3d) |
Dimensioner | 150.8 x 74.8 x 23.8 mm |
Diode | √ | NCV voltage induction | √ |
On-Off beep | √ | Low power prompt | √ |
Auto shut-down | √ | Flashlight | √ |
Keep data | √ | Backlit bright screen | √ |
Material | ABS/ Silicone | Zero Fire | √ |
Watch pen material | Brass/Silicone | Silicone sheath | √ |
Charging line | √ | With a stylus | √ |
Test leads | According to choice | Temperature line | √ |

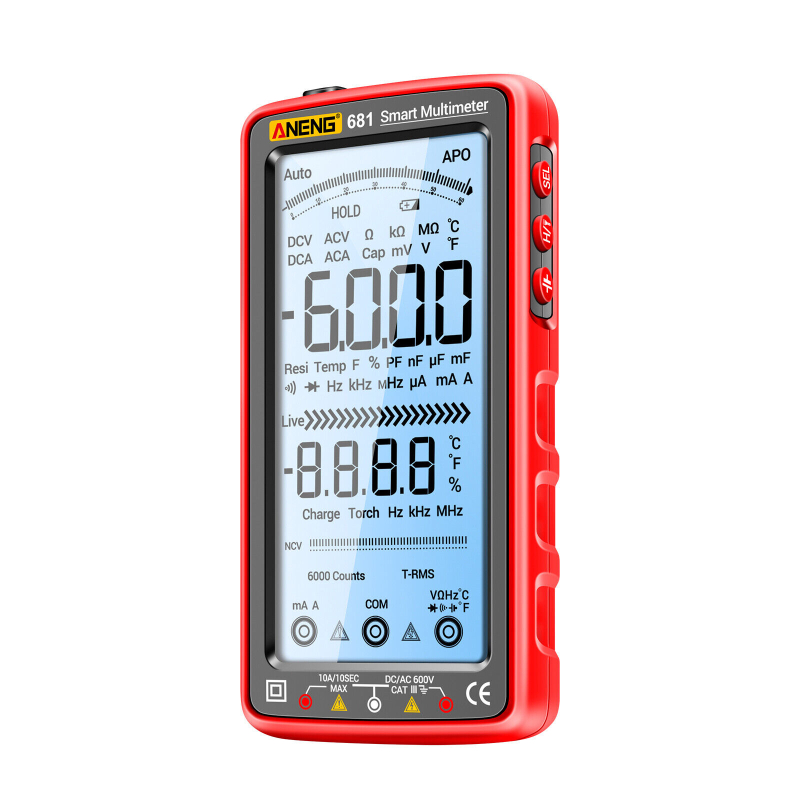

Model | 681 | Max Count | 6000 Counts |
