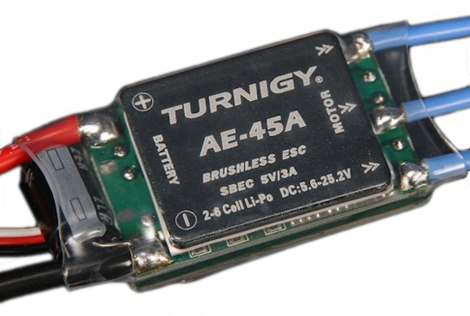

Specification:
Output: Continuous 45A, burst50A up to 10 seconds.
Input Voltage: 2-6 cells lithium battery or 5-18 cells NIMHbattery.
BEC: Linear 3A @ 5V
Control Signal Transmission: Optically coupled system.
Max Speed:
2 Pole: 210,000rpm
6 Pole: 70,000rpm
12 Pole: 35,000rpm
Size: 60mm (L) * 26mm (W) * 11mm (H).
Weight: 43g.
Features:
High performance microprocessorbrings out the best compatibility with all kinds of motors and thehighest driving efficiency.
Wide-open heatsink design to get the best heat dissipationeffect.
Improved Normal, Soft, Very-Soft start modes, compatible withaircraft and helicopter.
Smooth, linear, quick and precise throttle response.
Multiple protection features: Low-voltage cut-off protection /Over-heat protection / Throttle signal loss protection
Programable via transmitter
Programming features:
Brake setting (werecommend using brake for only folding props applications)
Battery type(Li-xx or Ni-xx)
Low voltage cutoff setting
Factory default setup restore
Timing settings (to enhance ESC efficiency and smoothness)
Soft acceleration start ups (for delicate gearbox applications)
Low voltage cutoff type (power reduction orirnmediate shutdown)
Factory default settings:
Brake: off
Battery type: Li-xx (Li-ion or Li-Po)
Low voltage cutoff threshold: Soft cut-off (2.6V)
Timing setup: Low
Soft Acceleration Start Up: Normal
Low voltage cutoff type: Medium
